8  Multivariate GARCH

8.1 DCC-GARCH

library(quantmod)
Loading required package: xts
Loading required package: zoo

Attaching package: 'zoo'
The following objects are masked from 'package:base':

    as.Date, as.Date.numeric
Loading required package: TTR
Registered S3 method overwritten by 'quantmod':
  method            from
  as.zoo.data.frame zoo
# Needed Internet Connection !! alike install packages
# Stock Ticker
stocks <- c("ASII.JK","BBCA.JK")

data_list <- lapply(stocks, function(stock) {
    getSymbols(stock, src = "yahoo", from = "2018-01-01", to="2022-12-31", auto.assign = FALSE)
})
Warning: ASII.JK contains missing values. Some functions will not work if
objects contain missing values in the middle of the series. Consider using
na.omit(), na.approx(), na.fill(), etc to remove or replace them.
# Daily Return
returns <- lapply(data_list, function(data) {
    dailyReturn(Cl(data))
})
Warning in to_period(xx, period = on.opts[[period]], ...): missing values
removed from data
# Combine data
combined_returns <- do.call(merge, returns)
names(combined_returns) <- stocks
combined_returns <- na.omit(combined_returns)
head(combined_returns)
                ASII.JK     BBCA.JK
2018-01-01  0.000000000 0.000000000
2018-01-02 -0.012048193 0.000000000
2018-01-03 -0.018292683 0.000000000
2018-01-04  0.021739130 0.014840183
2018-01-05  0.009118541 0.001124859
2018-01-08  0.000000000 0.004494382
library(rugarch)
Loading required package: parallel

Attaching package: 'rugarch'
The following object is masked from 'package:stats':

    sigma
library(rmgarch)

Attaching package: 'rmgarch'
The following objects are masked from 'package:xts':

    first, last
# GARCH Specification for a Single Asset
unispec <- ugarchspec(mean.model = list(armaOrder = c(0, 0)),
                     variance.model = list(model = "gjrGARCH",
                                           garchOrder = c(1, 1)),
                     distribution.model = "norm")

# Determine the number of assets
n_assets <- ncol(combined_returns)

# Replicate GARCH Specification for All Assets
garch_spec <- multispec(replicate(n_assets, unispec))

# DCC Model Specification
dcc_spec <- dccspec(uspec = garch_spec,
                   dccOrder = c(1, 1),
                   distribution = "mvnorm")
## Fit DCC
dcc.fit <- dccfit(dcc_spec,
                 data = combined_returns,
                 fit.control=list(scale=TRUE))
dcc.fit

*---------------------------------*
*          DCC GARCH Fit          *
*---------------------------------*

Distribution         :  mvnorm
Model                :  DCC(1,1)
No. Parameters       :  13
[VAR GARCH DCC UncQ] : [0+10+2+1]
No. Series           :  2
No. Obs.             :  1253
Log-Likelihood       :  6804.626
Av.Log-Likelihood    :  5.43

Optimal Parameters
-----------------------------------
                  Estimate  Std. Error   t value Pr(>|t|)
[ASII.JK].mu     -0.000439    0.000538  -0.81597 0.414515
[ASII.JK].omega   0.000013    0.000001  12.73770 0.000000
[ASII.JK].alpha1  0.029271    0.009480   3.08756 0.002018
[ASII.JK].beta1   0.912943    0.007720 118.25080 0.000000
[ASII.JK].gamma1  0.056569    0.023773   2.37952 0.017335
[BBCA.JK].mu      0.000635    0.000531   1.19598 0.231706
[BBCA.JK].omega   0.000015    0.000008   1.90315 0.057021
[BBCA.JK].alpha1  0.053503    0.030192   1.77212 0.076374
[BBCA.JK].beta1   0.820666    0.052704  15.57124 0.000000
[BBCA.JK].gamma1  0.127614    0.044277   2.88221 0.003949
[Joint]dcca1      0.050241    0.033824   1.48539 0.137441
[Joint]dccb1      0.766227    0.197276   3.88403 0.000103

Information Criteria
---------------------

Akaike       -10.841
Bayes        -10.787
Shibata      -10.841
Hannan-Quinn -10.821


Elapsed time : 2.327933
# Conditional Covariances
cov <- rcov(dcc.fit)
dim(cov)
[1]    2    2 1253
cov[,,1:4]
, , 2018-01-01

             ASII.JK      BBCA.JK
ASII.JK 0.0004465808 0.0001387231
BBCA.JK 0.0001387231 0.0002527424

, , 2018-01-02

             ASII.JK      BBCA.JK
ASII.JK 0.0004207083 0.0001246004
BBCA.JK 0.0001246004 0.0002229686

, , 2018-01-03

             ASII.JK      BBCA.JK
ASII.JK 0.0004086508 0.0001138079
BBCA.JK 0.0001138079 0.0001985343

, , 2018-01-04

             ASII.JK      BBCA.JK
ASII.JK 0.0004134356 0.0001058398
BBCA.JK 0.0001058398 0.0001784819
# Conditional Volatilities
vol <- sigma(dcc.fit)
head(vol)
              ASII.JK    BBCA.JK
2018-01-01 0.02113246 0.01589787
2018-01-02 0.02051117 0.01493213
2018-01-03 0.02021511 0.01409022
2018-01-04 0.02033311 0.01335971
2018-01-05 0.02012066 0.01314337
2018-01-08 0.01962831 0.01254032

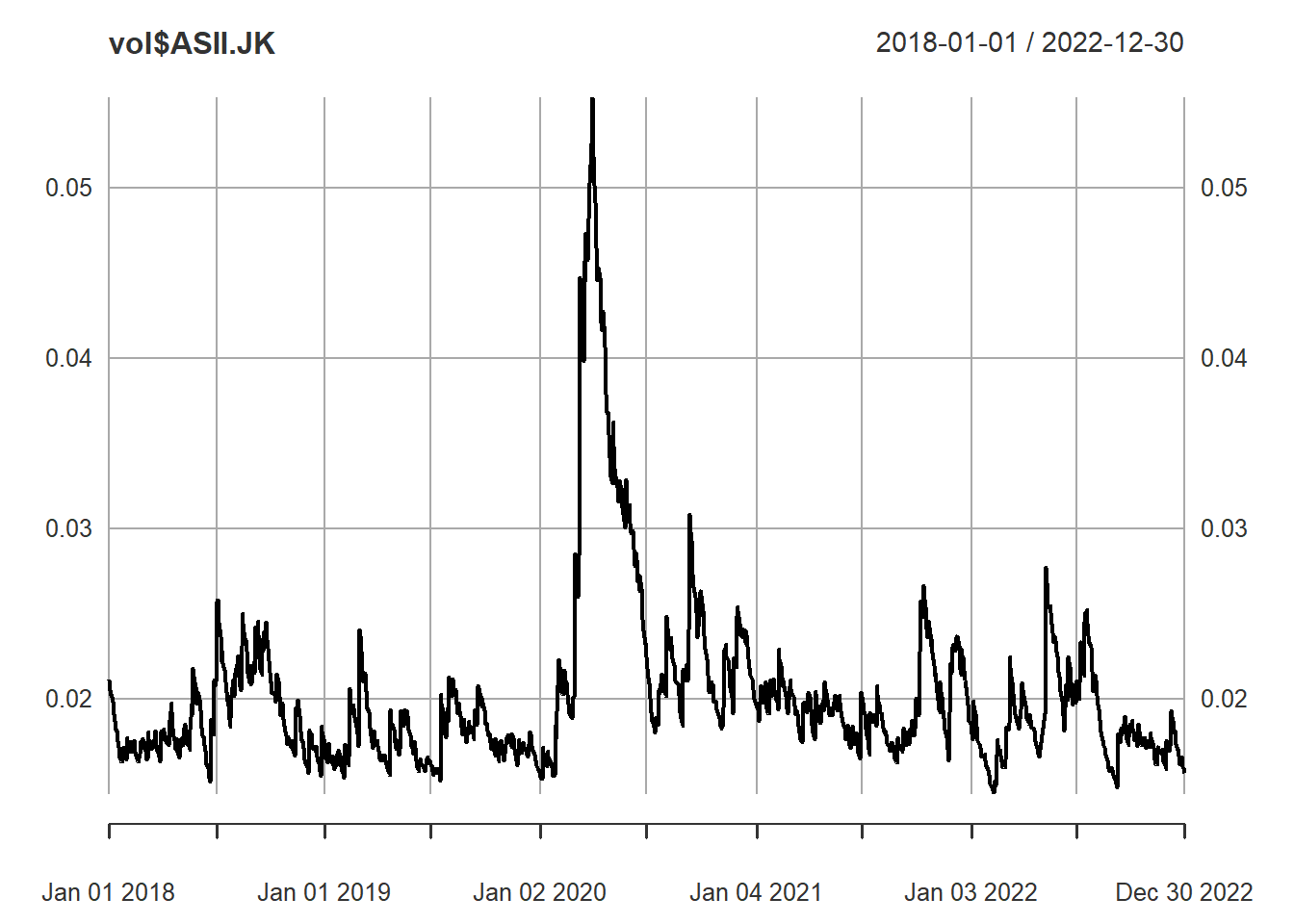

plot(vol$ASII.JK)

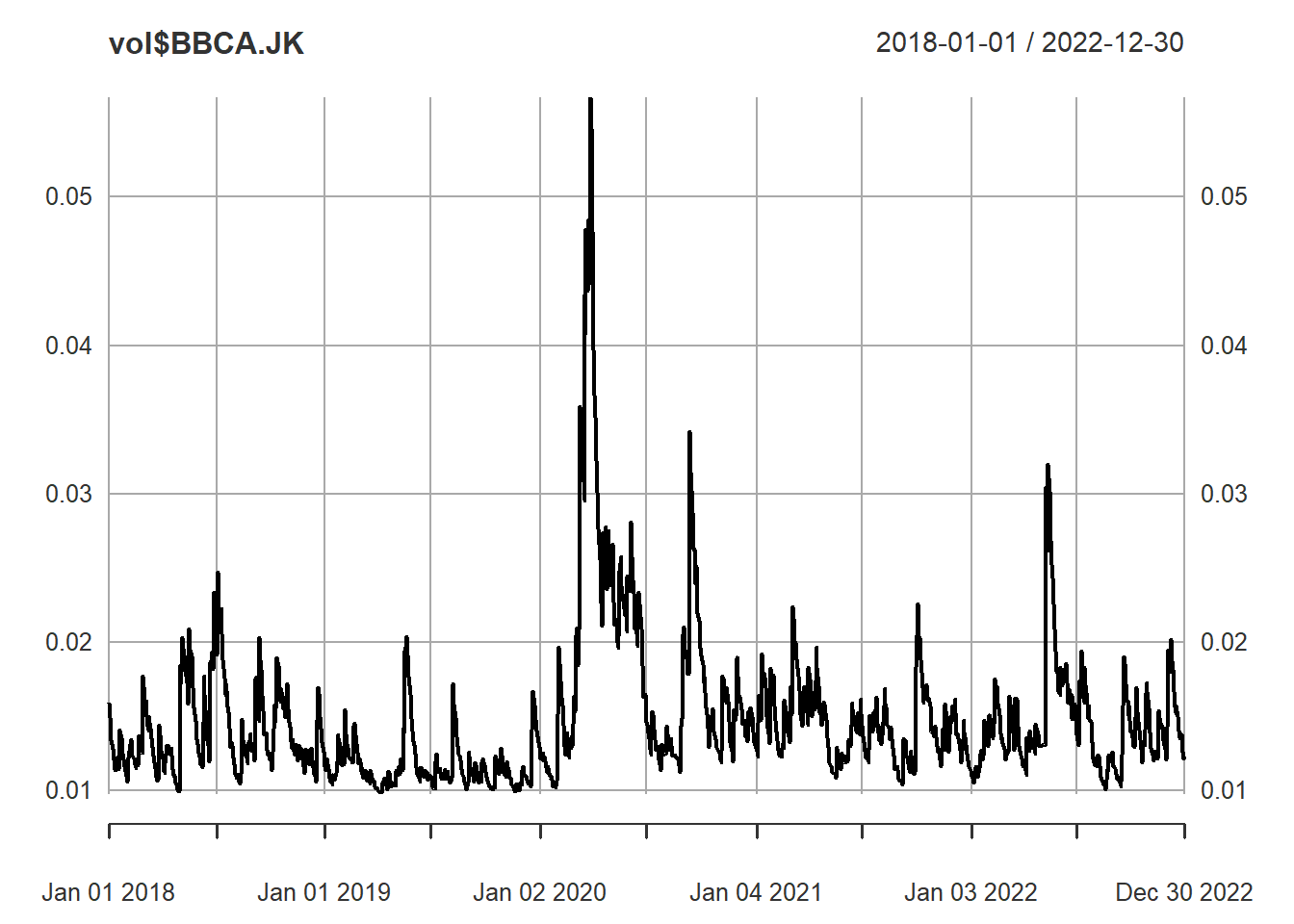

plot(vol$BBCA.JK)

# Conditional Correlations
cor <- rcor(dcc.fit)
cor[,,1:4]
, , 2018-01-01

          ASII.JK   BBCA.JK
ASII.JK 1.0000000 0.4129141
BBCA.JK 0.4129141 1.0000000

, , 2018-01-02

          ASII.JK   BBCA.JK
ASII.JK 1.0000000 0.4068245
BBCA.JK 0.4068245 1.0000000

, , 2018-01-03

          ASII.JK   BBCA.JK
ASII.JK 1.0000000 0.3995568
BBCA.JK 0.3995568 1.0000000

, , 2018-01-04

          ASII.JK   BBCA.JK
ASII.JK 1.0000000 0.3896261
BBCA.JK 0.3896261 1.0000000

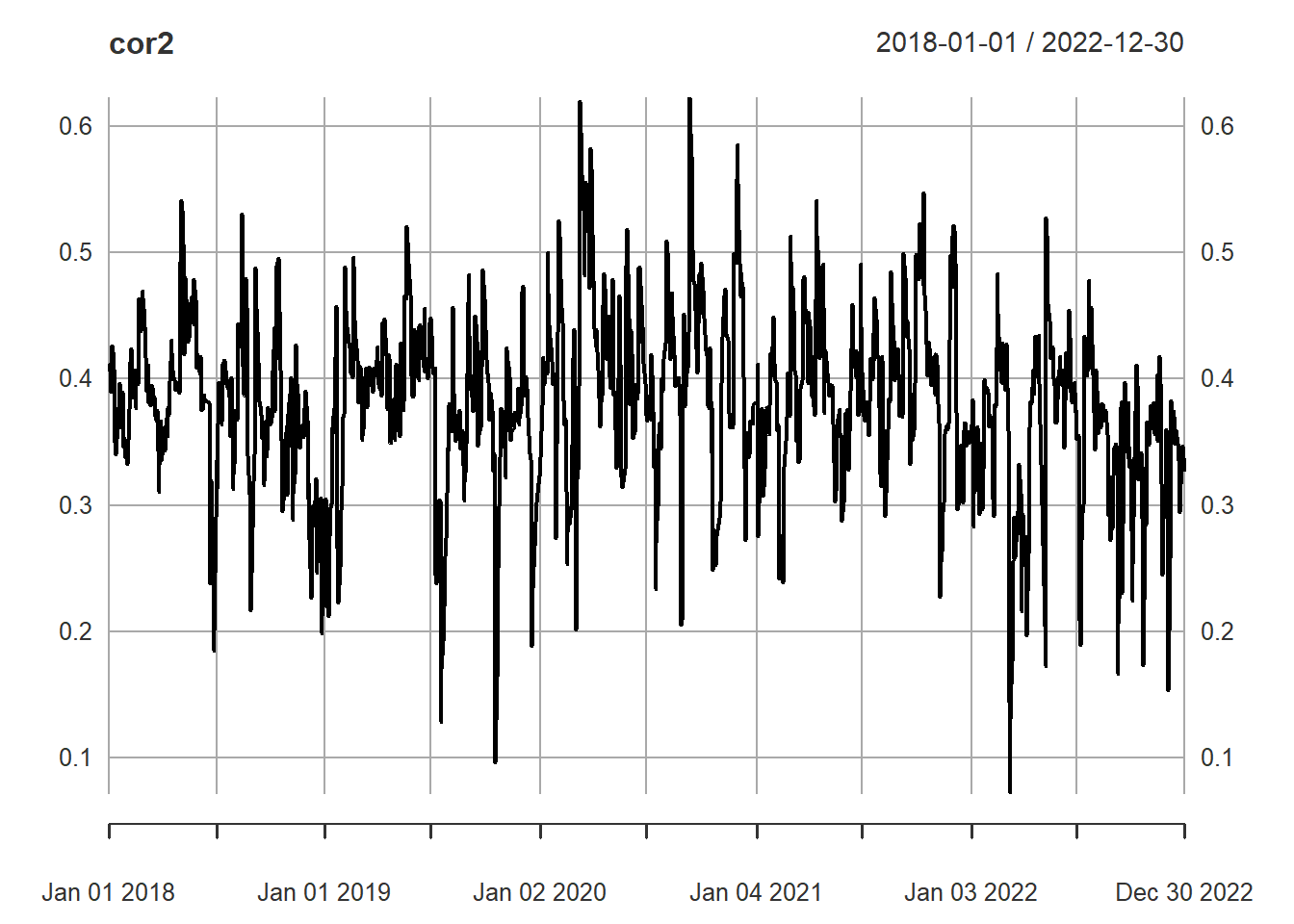

date <- row.names(data.frame(cor[1,1,]))
cor2 <- xts(cor[1, 2, ], order.by = as.Date(date))
plot(cor2)

forecast <- dccforecast(dcc.fit, n.ahead = 5)
forecast@mforecast$H #Cov
[[1]]
, , 1

             [,1]         [,2]
[1,] 2.400993e-04 5.997351e-05
[2,] 5.997351e-05 1.426083e-04

, , 2

             [,1]         [,2]
[1,] 2.460159e-04 6.413044e-05
[2,] 6.413044e-05 1.492416e-04

, , 3

             [,1]         [,2]
[1,] 2.517579e-04 6.792145e-05
[2,] 6.792145e-05 1.554635e-04

, , 4

             [,1]         [,2]
[1,] 2.573305e-04 7.138253e-05
[2,] 7.138253e-05 1.612995e-04

, , 5

             [,1]         [,2]
[1,] 2.627387e-04 7.454746e-05
[2,] 7.454746e-05 1.667735e-04
forecast@mforecast$R #Cor
[[1]]
, , 1

          [,1]      [,2]
[1,] 1.0000000 0.3241094
[2,] 0.3241094 1.0000000

, , 2

          [,1]      [,2]
[1,] 1.0000000 0.3346861
[2,] 0.3346861 1.0000000

, , 3

          [,1]      [,2]
[1,] 1.0000000 0.3433217
[2,] 0.3433217 1.0000000

, , 4

          [,1]      [,2]
[1,] 1.0000000 0.3503723
[2,] 0.3503723 1.0000000

, , 5

          [,1]      [,2]
[1,] 1.0000000 0.3561289
[2,] 0.3561289 1.0000000
forecast@mforecast$mu
, , 1

              [,1]         [,2]
[1,] -0.0004392902 0.0006354097
[2,] -0.0004392902 0.0006354097
[3,] -0.0004392902 0.0006354097
[4,] -0.0004392902 0.0006354097
[5,] -0.0004392902 0.0006354097
